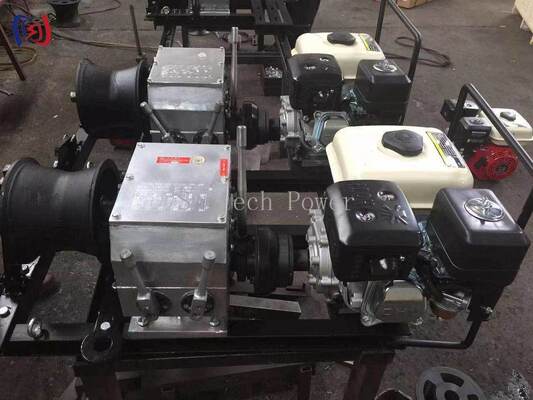

High Speed Fast Powered Winch with 3-5T Tractive Force and 5-24m/Min Traction Speed for Power Line Work

1 buah
MOQ
negotiable
harga
High Speed Fast Powered Winch with 3-5T Tractive Force and 5-24m/Min Traction Speed for Power Line Work
fitur Galeri Deskripsi Produk Quote request suatu
fitur
Spesifikasi
Nama: Winch Bertenaga Cepat
Nomor Barang.: 09131-09135a
Model: JJQ-3
Arah Rotasi: Corotation/Reversal
Kekuatan traktif: 3-5T
Kecepatan Traksi: 5-24m/menit
Kekuatan: 4.04-6.63KW
Berat: 94-148kg
Menyoroti:

High Speed Fast Powered Winch

,

3-5T Tractive Force Power Line Winch

,

5-24m/Min Traction Speed Conductor Stringing Winch
Informasi dasar
Tempat asal: Ningbo
Nama merek: Suntech
Sertifikasi: ISO
Nomor model: JJQ-3
Syarat-syarat pembayaran & pengiriman
Kemasan rincian: kasus kayu lapis
Waktu pengiriman: 3-7 hari
Syarat-syarat pembayaran: L/C,T/T
Menyediakan kemampuan: 3000 PC/bulan
Deskripsi Produk
High Speed Fast Powered Winch for Rapid Cable Pulling and Conductor Stringing
The Fast Powered Winch is engineered for power industry applications where speed is as critical as strength. This specialized winch system delivers exceptionally high line speeds, dramatically accelerating tasks involving pulling, lifting, or tensioning over long distances or complex paths. While maintaining robust pulling capacities, its primary advantage lies in rapid deployment of cables, conductors, and ropes, making it indispensable for tight deadlines, large-scale installations, and emergency restoration work.
Technical Specifications
Item No. Model Rotation Direction Gear Tractive Force (T) Traction Speed (M/MIN) Power (KW) Outline Size (MM) Weight (KG)
09131 JJQ-3 6HP Gasoline Engine Corotation Slow I 3.0 5 4.04 900*400*430 94
Slow II 2.0 7
Fast I 0.9 16
Fast II 0.6 24
Reversal Slow No lifting 4
Fast 13
09135 JJQ-5B 9HP Gasoline Engine Corotation Fast I 0.9 24 6.61 1100*525*600 138
Fast II 1.5 13
Slow I 2.5 8
Slow II 5.0 4
Reversal Slow No lifting 4
Fast 18
High Speed Fast Powered Winch with 3-5T Tractive Force and 5-24m/Min Traction Speed for Power Line Work 0
Key Features and Benefits
Exceptionally High Line Speed for Rapid Operations: Optimized gear ratio and powerful motor combination prioritize fast retrieval and payout of cables or ropes, essential for covering long distances in conductor stringing and rapid recovery of downed lines.
Dramatically Reduced Project Completion Times: Significantly compresses work duration, lowering labor costs and minimizing crew exposure to job site hazards.
Ideal for Long Distance Pulls and Stringing: Enables rapid conductor pulling through stringing blocks, allowing crews to progress efficiently along right-of-way.
Enhanced Efficiency in Underground Cable Installation: Revolutionizes cable pulling through ducts by smoothly drawing cable at high speeds, reducing friction and crew fatigue.
Critical for Emergency Response and Storm Restoration: Allows quick recovery of broken conductors and debris removal, improving SAIDI and SAIFI reliability metrics.
Robust Construction for Demanding High Cycle Use: Heavy-duty frame, high-capacity drum, and motor cooling system ensure durability during sustained high-speed operation.
Precision Control at High Speeds: Advanced variable speed controls and responsive braking systems ensure safe, accurate operation without shock loading.
Improved Crew Utilization and Workflow: Frees up crews to focus on preparation, termination, splicing, and quality inspection, optimizing overall productivity.
Force Multiplier for Modern Utility Fleets: Expands capability to tackle larger projects and respond effectively to emergencies, enhancing operational capacity.
Investment in Operational Excellence: Strategic tool that overcomes traditional bottlenecks in power construction and maintenance, delivering superior value through faster project turnaround.
By selecting a high-performance Fast Powered Winch, you are investing in a tool that directly accelerates project timelines, enhances emergency response capabilities, and provides a tangible competitive advantage in power infrastructure development and maintenance.
