Hoisting Point Block for Transmission Line Construction | 50–80KN Heavy Duty Lifting Pulley
Product Introduction

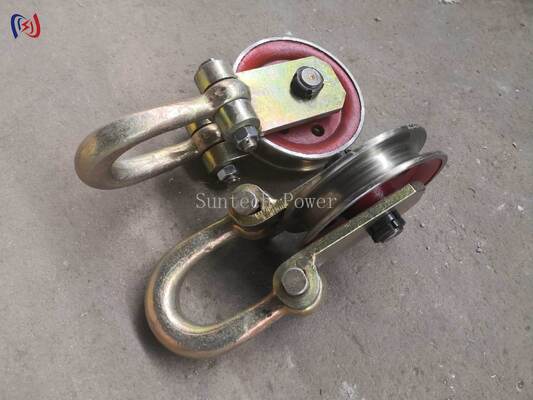

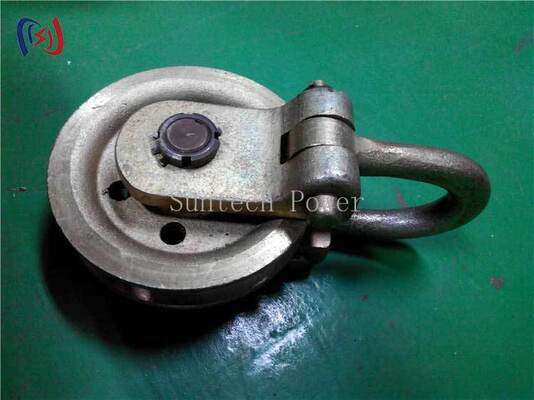

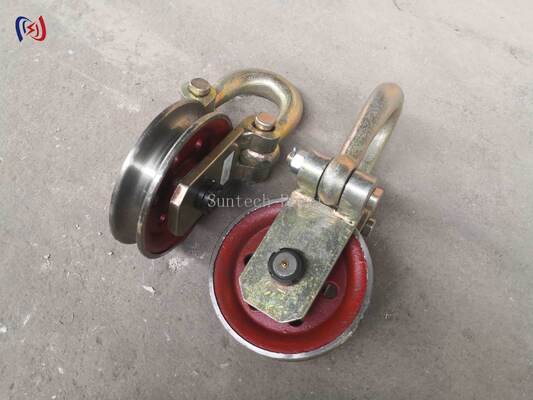

The Hoisting Point Block is a lifting and guiding pulley block designed for transmission line construction, pole erection, and utility hoisting work. It is mainly used for fixing the hoisting point on an A-shape lattice structure holding pole, helping replace or support traditional hoisting tackle during field installation.
This product is available in 50KN and 80KN rated load models, with 160mm and 190mm sheave diameters. Its single-sheave structure is suitable for rope hoisting, lifting point positioning, and utility construction applications where a defined lifting direction is required.
The Hoisting Point Block is commonly used in power line construction projects, especially for pole installation, tower erection support, and lifting operations in overhead line work.
Product Specifications
| Item No. |
Model |
Rated Load |
Sheave Diameter |
Sheave Width |
Weight |
| 12131 |
QHD-50 |
50KN |
160mm |
36mm |
8kg |
| 12132 |
QHD-80 |
80KN |
190mm |
42mm |
12kg |
Technical Details
| Item |
Description |
| Product Name |
Hoisting Point Block |
| Model Options |
QHD-50 / QHD-80 |
| Rated Load |
50KN / 80KN |
| Sheave Diameter |
160mm / 190mm |
| Sheave Width |
36mm / 42mm |
| Weight |
8kg / 12kg |
| Certification |
ISO9001 |
| Packaging |
Wooden Case |
| Warranty |
1 Year |
| Main Use |
Fixing with hoist point on A-shape lattice structure holding pole |
| Typical Industry |
Transmission line construction and utility lifting work |
Application Areas
- Transmission line construction
- A-shape lattice pole installation
- Utility pole erection
- Tower erection support
- Overhead line construction
- Power construction lifting work
- Rope hoisting and guiding
- Temporary lifting point setup
- Field installation of power line tools and structures
It is used where a controlled hoisting point is required during power construction and pole installation work.
Product Advantages
50KN and 80KN Rated Load Options - The product includes 50KN and 80KN load options, allowing selection according to different lifting and hoisting requirements in transmission line construction.
160mm and 190mm Sheave Diameter - With 160mm and 190mm sheave diameter options, the block provides a defined rope guiding path for lifting point applications.
Compact Weight for Field Handling - The two models weigh 8kg and 12kg, making them suitable for field construction environments where tools need to be moved and positioned on site.
Designed for A-Shape Lattice Holding Pole Use - The product is specifically used for fixing with a hoist point on an A-shape lattice structure holding pole, which matches power line construction and pole erection applications.
Single-Sheave Hoisting Structure - The single-sheave design helps guide the rope during lifting and hoisting operations, supporting controlled lifting direction in utility construction work.
Suitable for Transmission Line Tool Systems - This hoisting point block can be used together with transmission line stringing tools, hoisting tackle, and rope hoist systems in power construction projects.
SEO Keywords
Hoisting Point Block
Hoisting Pulley Block
Transmission Line Hoisting Block
50KN Hoisting Block
80KN Lifting Pulley
Pole Hoisting Block
A-Shape Lattice Pole Hoisting Block
Rope Hoist Pulley
Block and Tackle Pulley
Utility Construction Lifting Block
Frequently Asked Questions
What is a Hoisting Point Block used for?
A Hoisting Point Block is used to fix and guide a lifting point during transmission line construction, pole erection, and utility hoisting work. It helps guide ropes and support controlled lifting direction.
Is this product suitable for transmission line construction?
Yes. It is designed for transmission line construction, especially for use with an A-shape lattice structure holding pole and utility lifting operations.
What rated load options are available?
The available rated load options are 50KN for model QHD-50 and 80KN for model QHD-80.
What are the sheave diameters?
Model QHD-50 has a 160mm sheave diameter, while model QHD-80 has a 190mm sheave diameter.
What is the sheave width?
The sheave width is 36mm for QHD-50 and 42mm for QHD-80.
What is the weight of each model?
QHD-50 weighs 8kg, and QHD-80 weighs 12kg.
Can it replace hoisting tackle?
According to the product information, it is used for fixing with the hoist point on an A-shape lattice structure holding pole, in order to instead of hoisting tackle in relevant construction conditions.
