fitur

Spesifikasi

Nama: Winch Penarik Kabel

Model: JJQ

Kecepatan: <16m/mnt

Kekuatan traktif: 3-5T

Kekuatan: 4.04-6.61KW

Berat: 100-230KG

Menyoroti:

High Tension Installation Cable Pulling Winch

3-5T Tractive Force Cable Winch Puller

Underground and Aerial Power Cables Power Cable Winch

Informasi dasar

Tempat asal: Ningbo

Nama merek: Suntech

Sertifikasi: ISO

Nomor model: JJQ

Syarat-syarat pembayaran & pengiriman

Kemasan rincian: Kasus kayu lapis

Waktu pengiriman: 3-7 hari

Syarat-syarat pembayaran: L/C,T/T

Menyediakan kemampuan: 30000 PC/bulan

Galeri

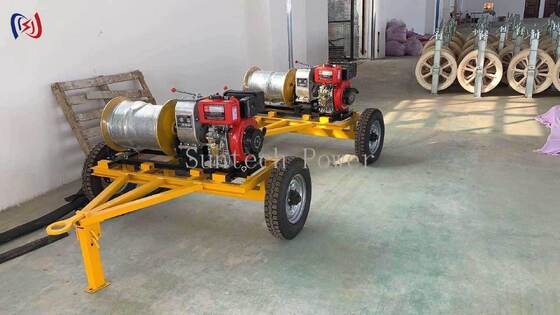

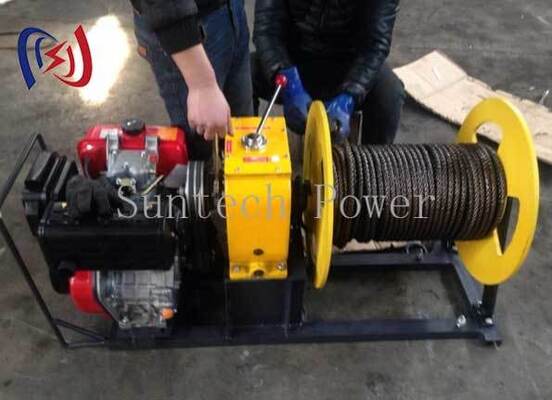

Professional Cable Pulling Winch for High Tension Installation of Underground and Aerial Power Cables with 3-5T Tractive Force

Deskripsi Produk

Professional Cable Pulling Winch

High-performance machine designed for controlled installation of underground and aerial power cables, fiber optic cables, and communication lines through conduits, ducts, and cable trays.

Technical Specifications

Item No.	Model	Rotation Direction	Gear	Rotational Speed (RPM)	Traction Speed (M/MIN)	Tractive Force (T)	Power (KW)	Outline (MM)	Weight (KG)
08155	JJQ-30 6HP Gasoline Engine	Corotation	I Slow	9.0	4.0	3.0	4.04	1000500560	100
		Corotation	Ⅱ Fast	16.0	6.6	1.8
		Reversal	Reverse Gear	7.5	3.3	No Lifting
08156	JJQ-50 9HP Gasoline Engine	Corotation	I Slow	6.5	4.0	5.0	6.61	1400510650	150
		Corotation	Ⅱ Fast	16.0	9.0	2.2
		Reversal	Reverse Gear	7.0	4.0	No Lifting

Key Features & Benefits

Smooth, Controlled Pulling Force: Prevents cable damage with gradual tension application and steady speed control
Long Distance Capability: Handles complex installations through multiple bends and congested conduits
Enhanced Worksite Safety: Eliminates manual pulling hazards with remote control operation options
Increased Productivity: Completes cable pulls in minutes instead of hours, reducing labor costs
Precise Tension Control: Ensures optimal cable placement and code-compliant installations
Versatile Application: Suitable for various cable types including power, control, and fiber optic cables
Durable Construction: Built for demanding job site conditions with sealed, heavy-duty components
Reduced Physical Strain: Allows crews to focus on technical aspects rather than brute-force labor
Professional Grade Equipment: Essential tool for electrical contractors and utility companies
Rapid ROI: Pays for itself through labor savings, reduced cable damage, and project efficiency

Professional Applications

This cable pulling winch is indispensable for electrical contractors, utility companies, and telecommunication installers working on underground conduit systems, aerial installations, industrial powerhouses, and complex cable tray networks. It represents the engineered solution for moving cable with precise mechanical force, replacing hazardous manual effort with controlled, reliable performance.
